AWS is introducing certificate-based mutual Transport Layer Security (TLS) authentication for Amazon API Gateway. This is a new method for client-to-server authentication that can be used with API Gateway’s existing authorization options.

By default, the TLS protocol only requires a server to authenticate itself to the client. The authentication of the client to the server is managed by the application layer. The TLS protocol also offers the ability for the server to request that the client send an X.509 certificate to prove its identity. This is called mutual TLS (mTLS) as both parties are authenticated via certificates with TLS.

Mutual TLS is commonly used for business-to-business (B2B) applications. It’s used in standards such as Open Banking, which enables secure open API integrations for financial institutions across the United Kingdom and Australia. It’s common for Internet of Things (IoT) applications to authenticate devices using digital certificates. Also, many companies authenticate their employees before granting access to data and services when used with a private certificate authority (CA).

API Gateway now provides integrated mutual TLS authentication at no additional cost. You can enable mutual TLS authentication on your custom domains to authenticate regional REST and HTTP APIs. You can still authorize requests with bearer or JSON Web Tokens (JWTs) or sign requests with IAM-based authorization.

To use mutual TLS with API Gateway, you upload a CA public key certificate bundle as an object containing public or private/self-signed CA certs. This is used for validation of client certificates. All existing API authorization options are available for use with mTLS authentication.

Getting started

To complete the following sample setup, you must first create an HTTP API with a valid custom domain name using the AWS Management Console. Mutual TLS is now available for both regional REST APIs and the newer HTTP APIs. You use HTTP APIs for the examples depicted in this post. More details on the pre-requisites to configure a custom domain name are available in the documentation.

Securing your API with mutual TLS

To configure mutual TLS, you first create the private certificate authority and client certificates. You need the public keys of the root certificate authority and any intermediate certificate authorities. These must be uploaded to API Gateway to authenticate certificates using mutual TLS. This example uses OpenSSL to create the certificate authority and client certificate. You can alternatively use a managed service such as AWS Certificate Manager Private Certificate Authority (ACM Private CA).

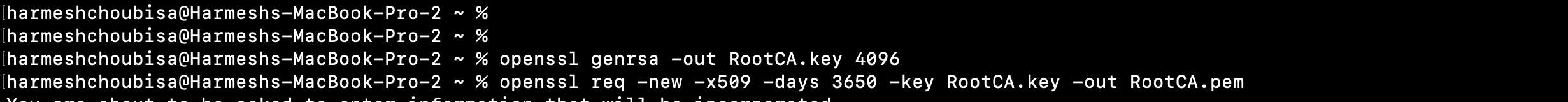

1. You first create a new certificate authority with signed client certificate using OpenSSL:

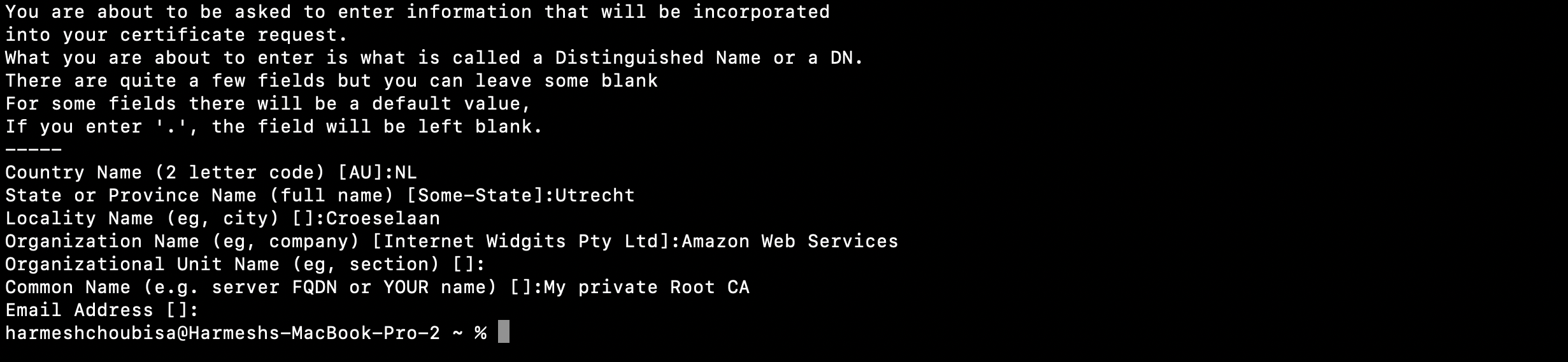

2. Provide the requested inputs for the root certificate authority’s subject name, locality, organization, and organizational unit properties. Choose your own values for these prompts to customize your root CA.

3. You can optionally create any intermediary certificate authorities (CAs) using the previously issued root CA. The certificate chain length for certificates authenticated with mutual TLS in API Gateway can be up to four levels.

4. Once the CA certificates are created, you create the client certificate for use with authentication.

5. Create client certificate private key and certificate signing request (CSR):

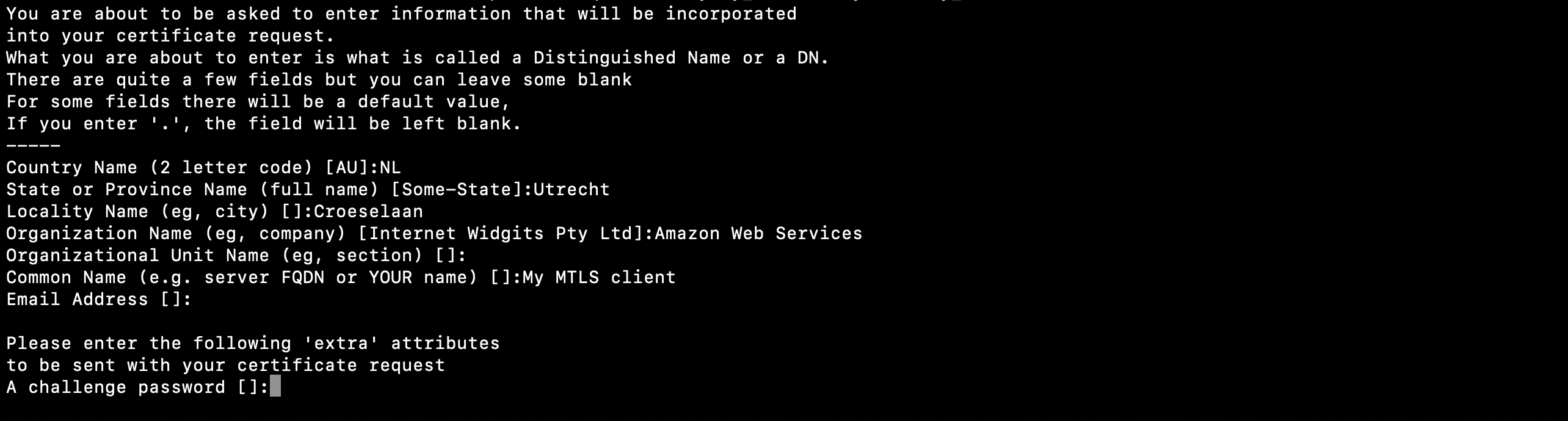

6. Enter the client’s subject name, locality, organization, and organizational unit properties of the client certificate. Keep the optional password challenge empty default.

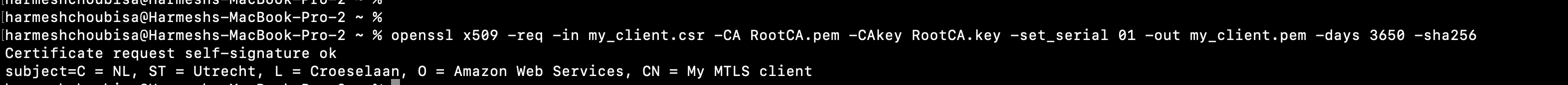

7. Sign the newly created client cert by using your certificate authority you previously created:

8. You now have a minimum of five files in your directory (there are additional files if you are also using an intermediate CA):

RootCA.key (root CA private key)
RootCA.pem (root CA public key)
my_client.csr (client certificate signing request)
my_client.key (client certificate private key)
my_client.pem (client certificate public key)

9. Prepare a PEM-encoded trust store file for all certificate authority public keys you want to use with mutual TLS:

A. If only using a single root CA (with no intermediary CAs), only the RootCA.pem file is required. Copy the existing root CA public key to a new truststore.pem file name for further clarity on which file is being used by API Gateway as the trust store:
cp RootCA.pem truststore.pem
B. If using one or more intermediary CAs to sign certificates with a root of trust to your root CA previously created, you must bundle the respective PEM files of each CA into a single trust store PEM file. Use the cat command to build the bundle file:
cat IntermediateCA_1.pem IntermediateCA_2.pem RootCA.pem > truststore.pem >

10. Upload the trust store file to an Amazon S3 bucket in the same AWS account as our API Gateway API. It is also recommended to enable object versioning for the bucket you choose. You can perform these actions using the AWS Management Console, SDKs, or AWS CLI. Using the AWS CLI, create an S3 bucket, enable object versioning on the bucket, and upload the CA bundle file:
aws s3 mb s3://your-name-ca-truststore --region us-east-1 #creates a new S3 bucket – skip if using existing bucket
aws s3api put-bucket-versioning --bucket your-name-ca-truststore --versioning-configuration Status=Enabled #enables versioning on S3 bucket
aws s3 cp truststore.pem s3://your-name-ca-truststore/truststore.pem #uploads object to S3 bucket

After uploading the new truststore CA bundle file, enable mutual TLS on the API Gateway custom domain name.
